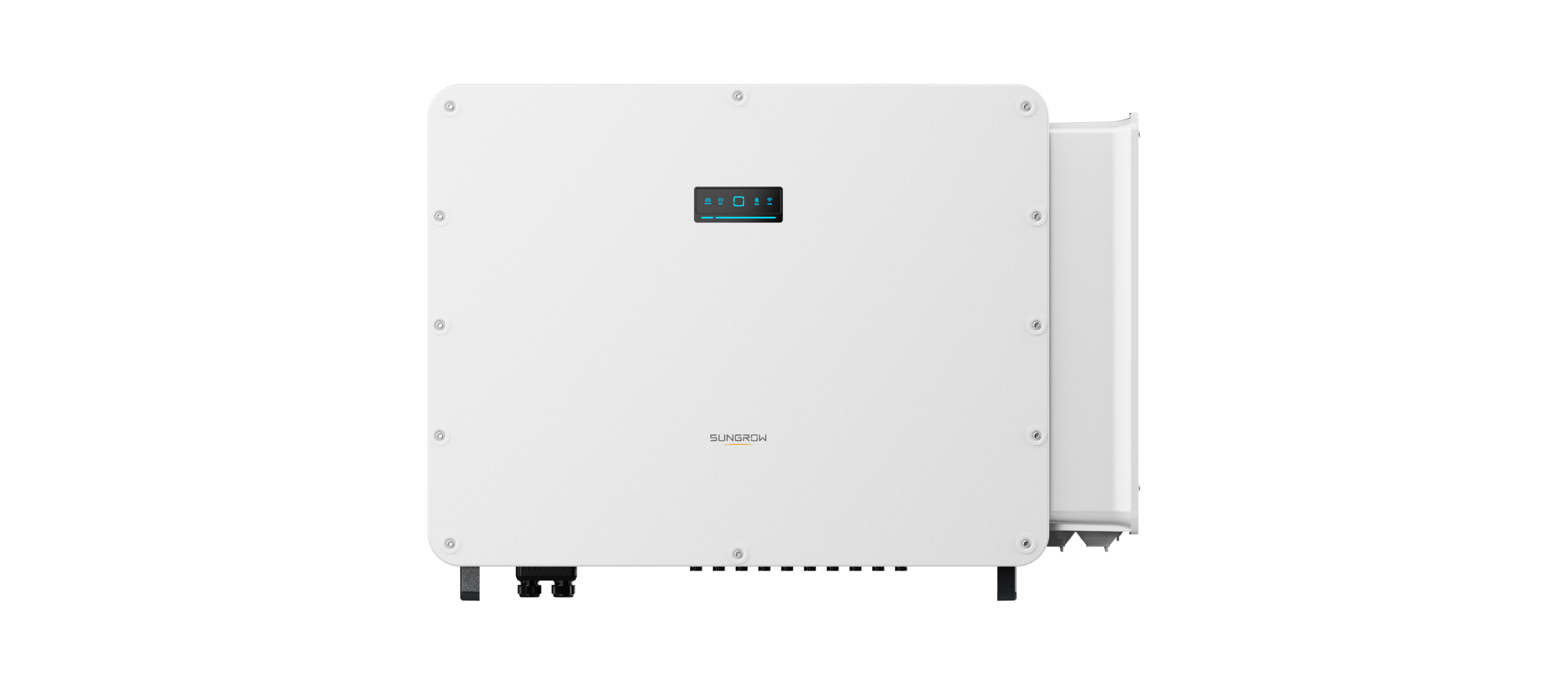

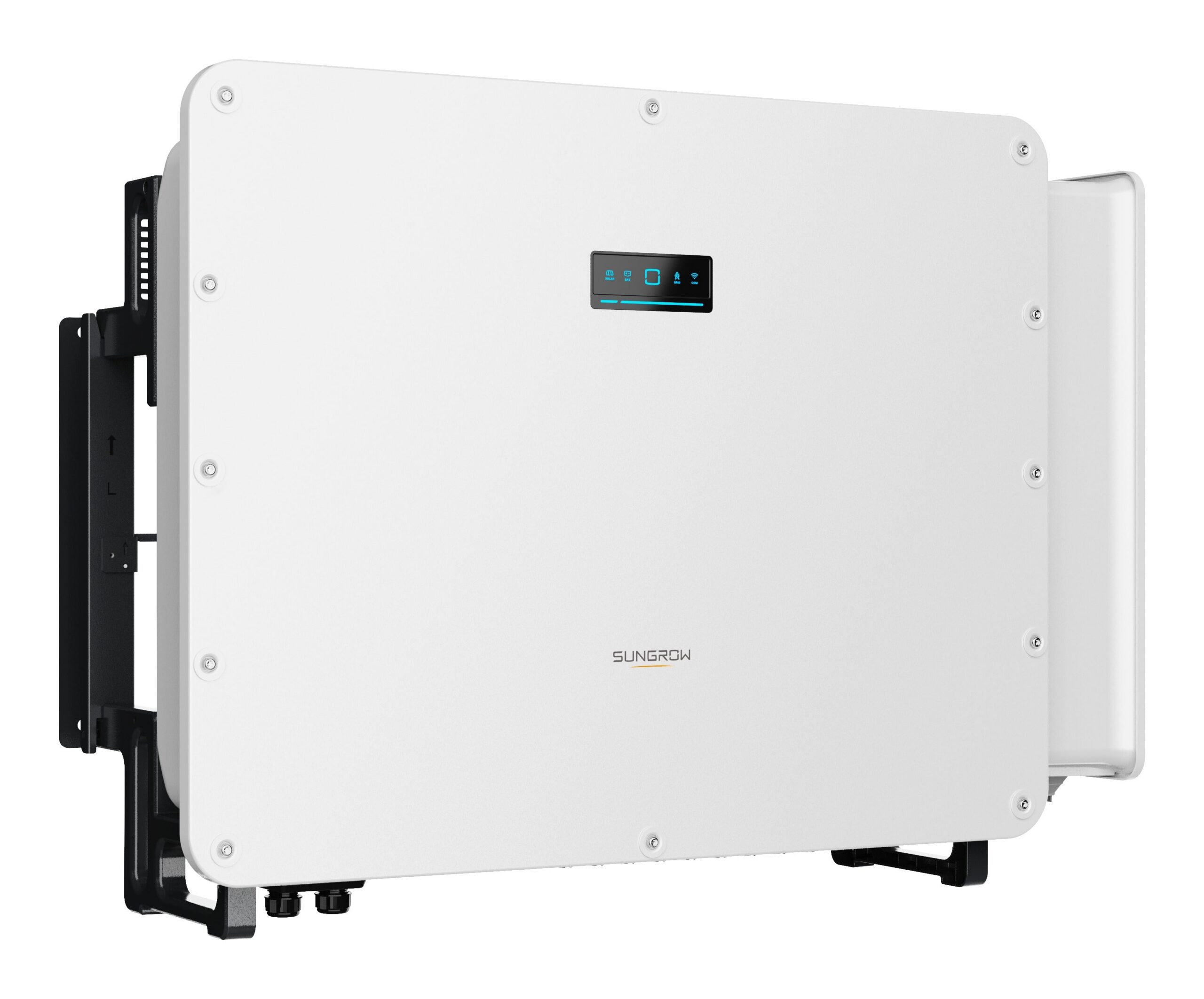

Sungrow SH100CX 100kW Three-Phase Hybrid Inverter

The Sungrow SH100CX is a 100kW three-phase hybrid inverter for commercial and industrial solar and battery systems. It has 10 independent MPPTs with 2 strings each, accepts up to 200kWp of PV (200% oversizing) and charges and discharges a compatible high-voltage lithium-ion battery at up to 200A. Built-in backup switching of 10ms or less keeps essential loads running during a grid outage, and the DC-coupled design suits both new installations and retrofits.

Key specifications

• Rated AC output: 99.99kW (99.99kVA), three-phase 230/400V
• PV input: 10 MPPTs with 2 strings each (40A per MPPT), up to 200kWp, 1100V maximum, MPPT range 180 to 1000V
• Battery: lithium-ion, 129 to 880V, up to 200A and 99.99kW charge and discharge (CAN communication)
• Backup: 99.99kW rated off-grid output, 1.5 times rated power for 10 seconds, switchover in 10ms or less
• Efficiency: 98.3% maximum, 98% European
• Protection: AFCI 3.0+ arc fault detection, PID Zero, string current monitoring, DC Type I+II and AC Type II surge protection
• Supplied with DC cover; DC switch built in
• Enclosure: IP66, C5 corrosion rating, smart forced air cooling, -30 to 60°C operating range
• Dimensions and weight: 1095 x 795 x 360mm (W x H x D), 128kg or less
• Compliance: AS/NZS 4777.2:2020, IEC 62109-1/-2; listed on the Clean Energy Council approved inverter list
• Warranty: 10 years (Sungrow Australia standard warranty)
• Model: SH100CX

Suits

Three-phase commercial and industrial solar and battery systems, new builds or DC-coupled retrofits, including time-of-use, dynamic pricing and VPP applications with backup power.
