Mibet MR-VI-10/10-15/MA Tilt Frame Adjustable 10-15 Set

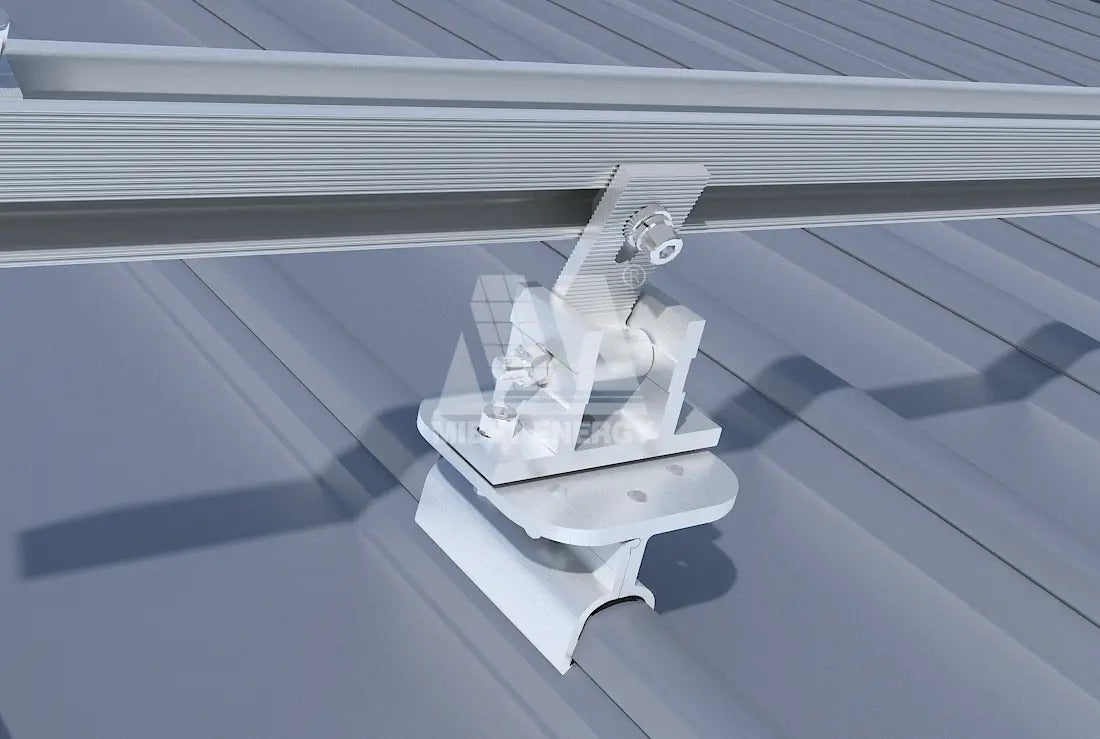

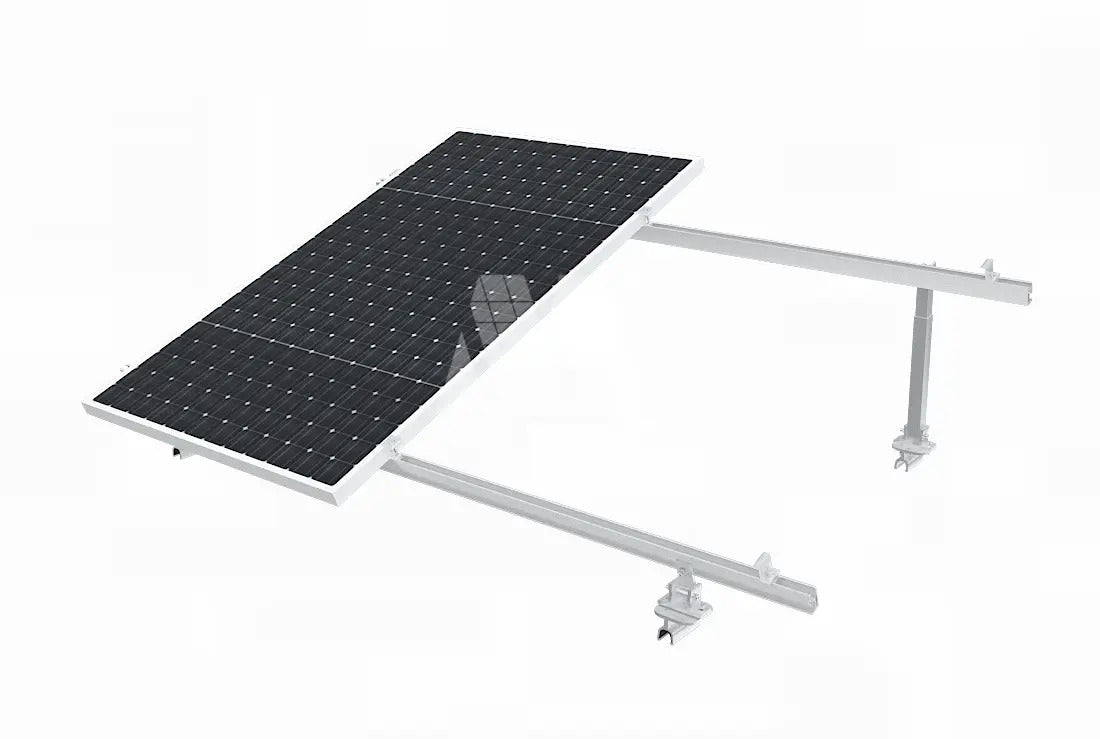

The Mibet MR-VI-10/10-15/MA is an adjustable tilt frame set from the Mibet MRac Tilt Kit range, for a panel angle of 10 to 15 degrees. It pairs a front support with an adjustable rear support, which together carry the Mibet MA rail and raise the panels to the chosen angle above the roof. The kit is pre-assembled to reduce installation time on site.

Key specifications

• Tilt angle: adjustable, 10 to 15 degrees
• Components: front support and adjustable rear support for Mibet MA rail
• Material: anodised AL6005-T5 aluminium alloy with SUS304 stainless steel and zinc-nickel plated steel fasteners
• Design standard: AS/NZS 1170.2, maximum wind speed 60m/s
• Warranty: 10 years
• Model: MR-VI-10/10-15/MA

Suits

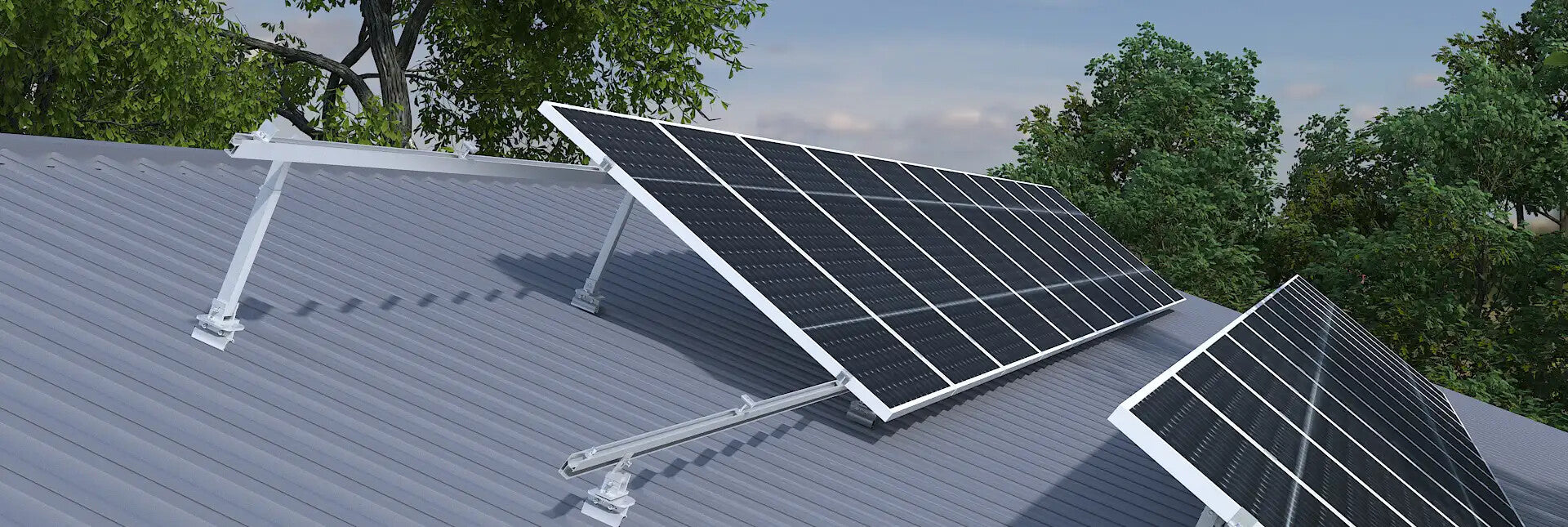

Mibet MRac MA rail installations on metal roofs and flat roofs where framed panels need to be raised to a 10 to 15 degree angle.
