Goodwe GW6K-EHA-G20 6kW Single-Phase Hybrid Inverter

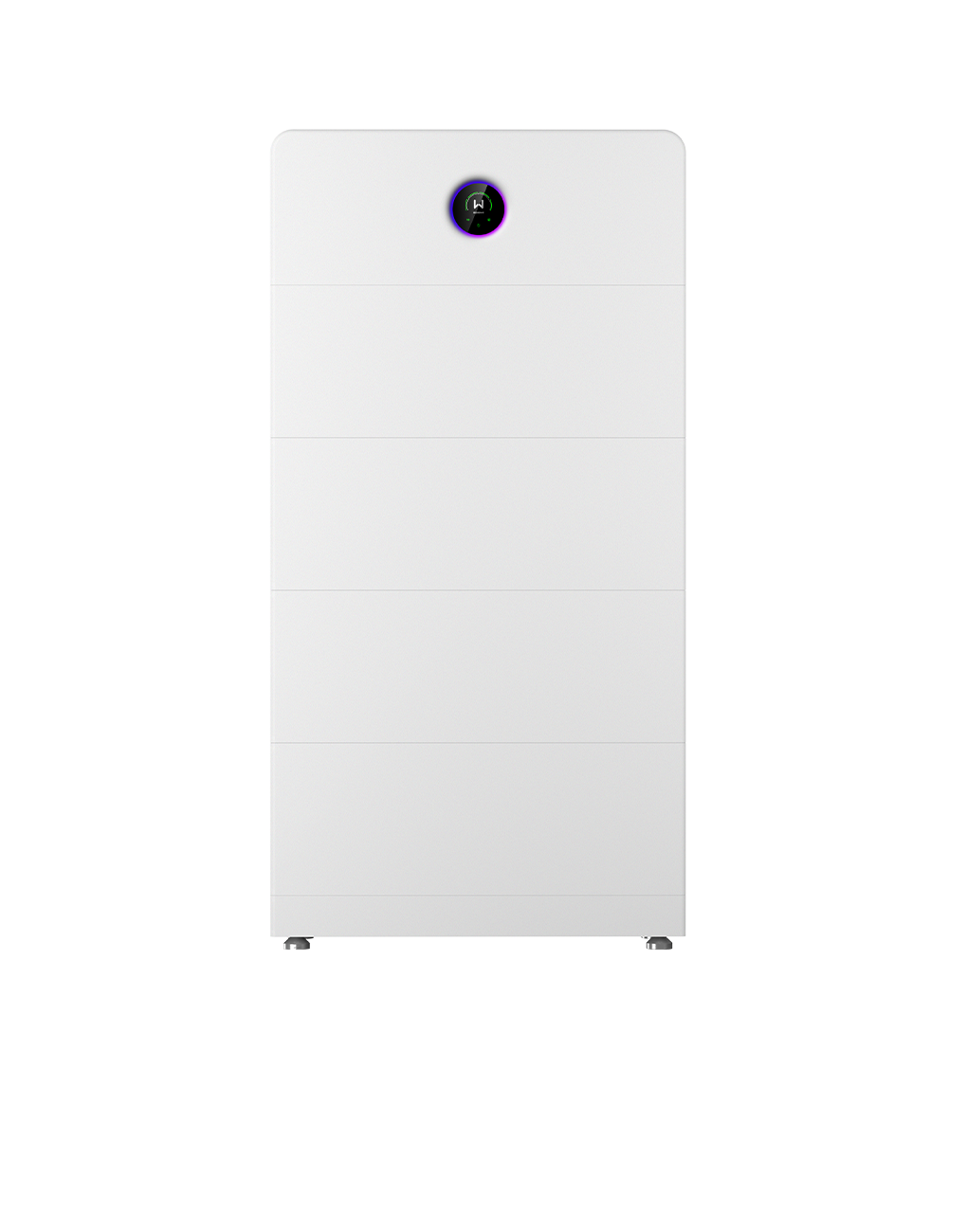

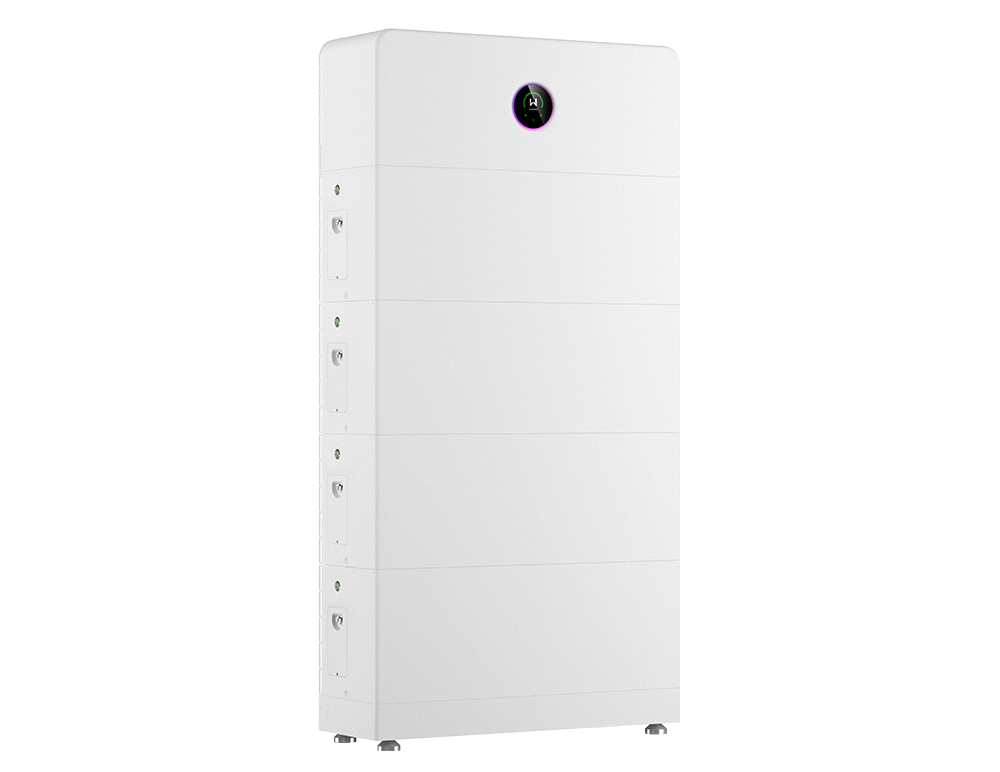

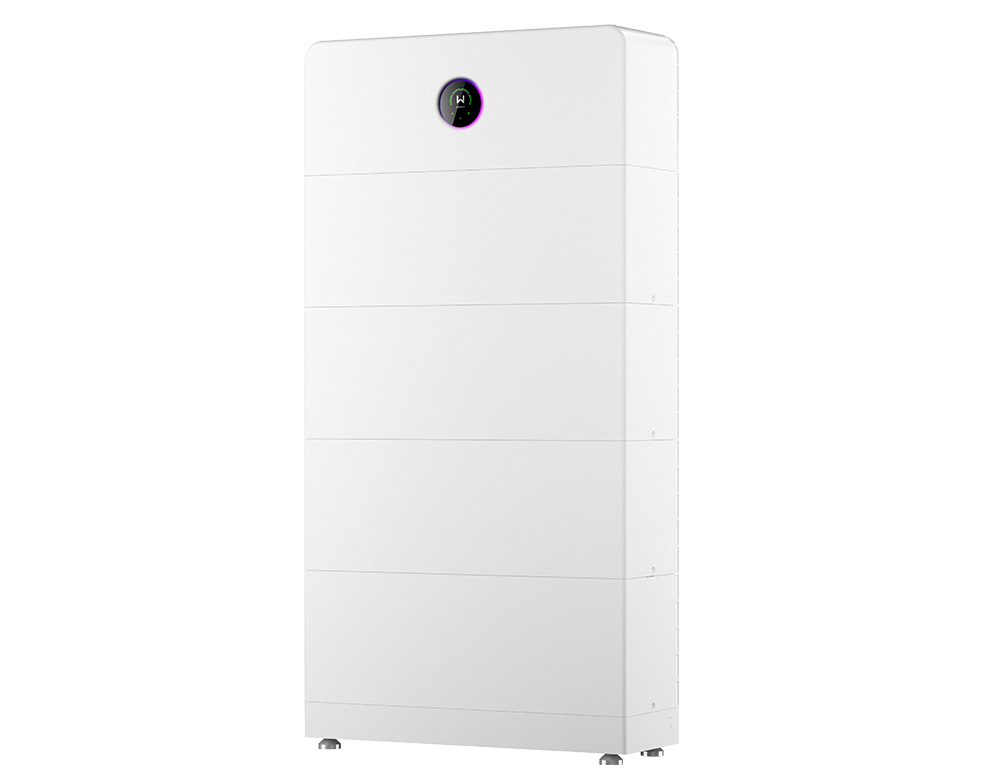

The Goodwe GW6K-EHA-G20 is the 6kW single-phase power module of the Goodwe ESA G20 all-in-one series, a hybrid inverter that sits on top of a stack of Goodwe ESA high-voltage LFP battery modules in a pre-wired, modular design. Two MPPTs rated at 20A each and up to 200% PV oversizing give flexibility on array design, while the internal bypass supports whole-home backup with switching in under 4ms. The fanless, naturally cooled design runs at 30dB or less and the IP66 enclosure suits indoor or outdoor installation.

Key specifications

• Rated power: 6kW / 6kVA on-grid and backup (12kVA for 10 seconds)
• Whole-home backup: internal bypass up to 50A, backup switching under 4ms
• PV input: 2 MPPTs (1 string each), 20A per MPPT, 40 to 560V MPPT range, up to 12kW PV
• Efficiency: 97.6% max, 97.0% European, 98.0% battery to AC
• Battery: high-voltage LFP, 350 to 550V, up to 9.0kW charge and 6.6kW discharge; Goodwe ESA battery modules, 5 to 108kWh per system
• Protection: IP66, integrated AFCI, Type II DC and AC surge protection; operating range -35 to +60°C (derating above 40°C)
• Communication: WiFi, LAN and Bluetooth, RS485; 4G optional
• Dimensions and weight: 800 x 300 x 270mm, 24kg
• Supplied with WiFi communication and 1 x CT
• Warranty: 10 years (Goodwe limited warranty for Australia and New Zealand)
• Compliant with AS/NZS 4777.2:2020
• Model: GW6K-EHA-G20

Suits

Single-phase residential solar and battery installations built on Goodwe ESA battery modules (GW5.1, GW8.3, GW6.0 and GW9.0-BAT-D series), which are sold separately.
