Goodwe GW22K-HCA-20 22kW Three Phase EV Charger

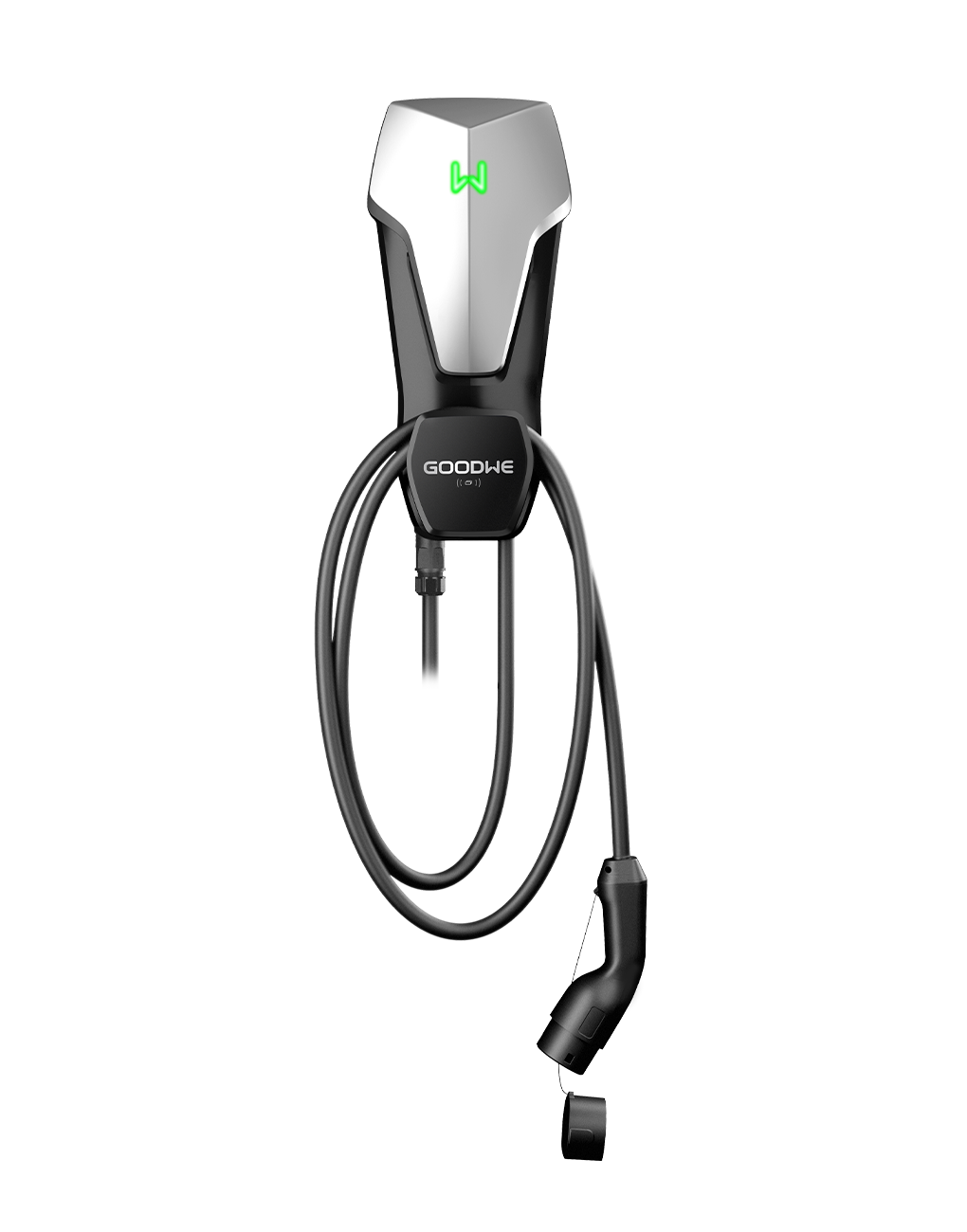

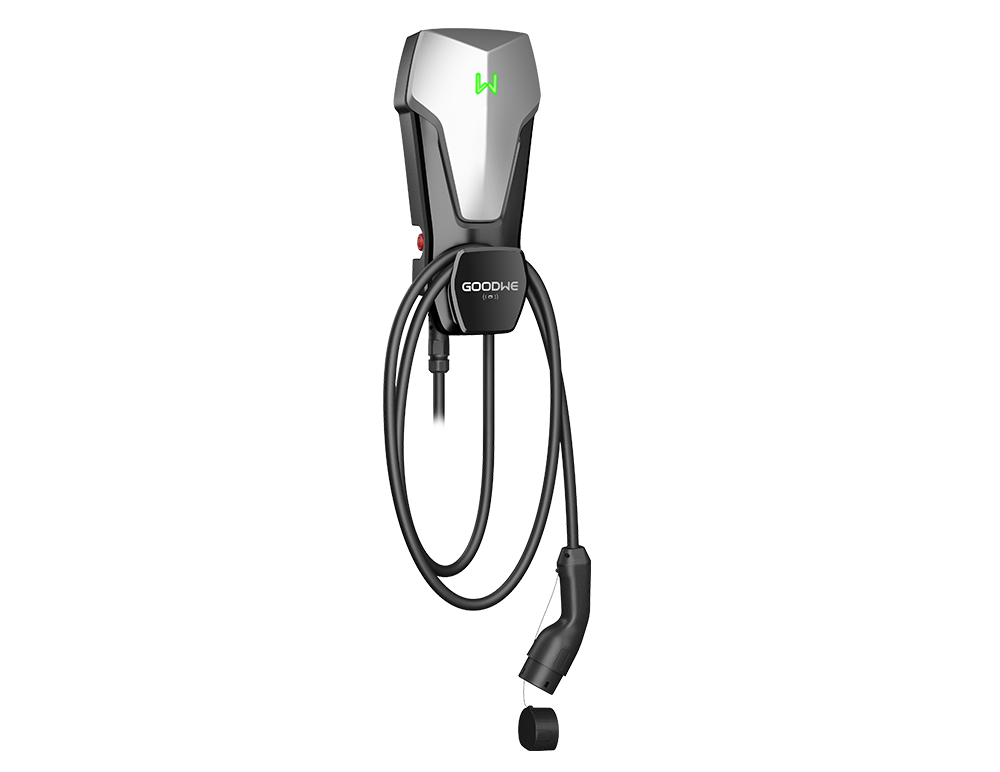

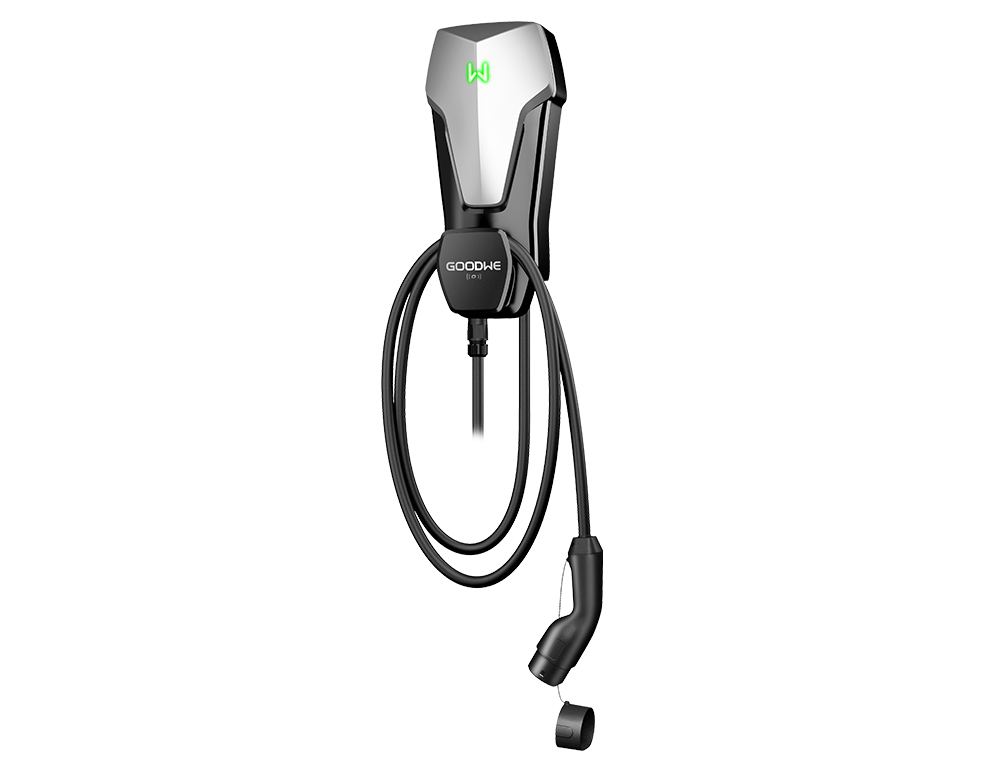

The Goodwe GW22K-HCA-20 is a 22kW three-phase AC EV charger from the HCA G2 series, fitted with a 7.5m tethered IEC Type 2 charging cable. It works with compatible Goodwe inverters, including the ET and ESA series, to charge from surplus solar or from solar plus battery, and automatic single/three-phase switching lets it keep charging from solar when surplus power is low. Charging starts by app, RFID card or automatically on plug-in, and the IP66 body suits indoor or outdoor installation on a wall or the optional stand.

Key specifications

• Rated output: 22kW, 400V three-phase, 32A
• Cable: tethered IEC Type 2, 7.5m
• Phase switching (when enabled): changes to single-phase charging at 1.4kW when input power falls below 4.2kW
• Charging modes: fast charging, PV priority, PV plus battery, scheduled charging, dynamic load control
• Start methods: app, RFID card or auto start; 2 x RFID cards supplied
• Communication: WiFi, Bluetooth, LAN and 2 x RS485; Modbus TCP
• Protection: IP66 body (IP55 plug), residual current detection AC 30mA + DC 6mA, Type III AC surge protection, emergency power off; an external Type A RCD is required
• Operating range: -30 to +50°C
• Dimensions and weight: 208 x 450 x 170mm, 7.1kg with 7.5m cable
• Certifications: IEC 61851-1, IEC 62955, IEC 62311, AS/NZS 4268:2017
• Model: GW22K-HCA-20

Suits

Home and small business EV charging on three-phase supplies, including solar charging with compatible Goodwe inverters such as the ET and ESA series.
