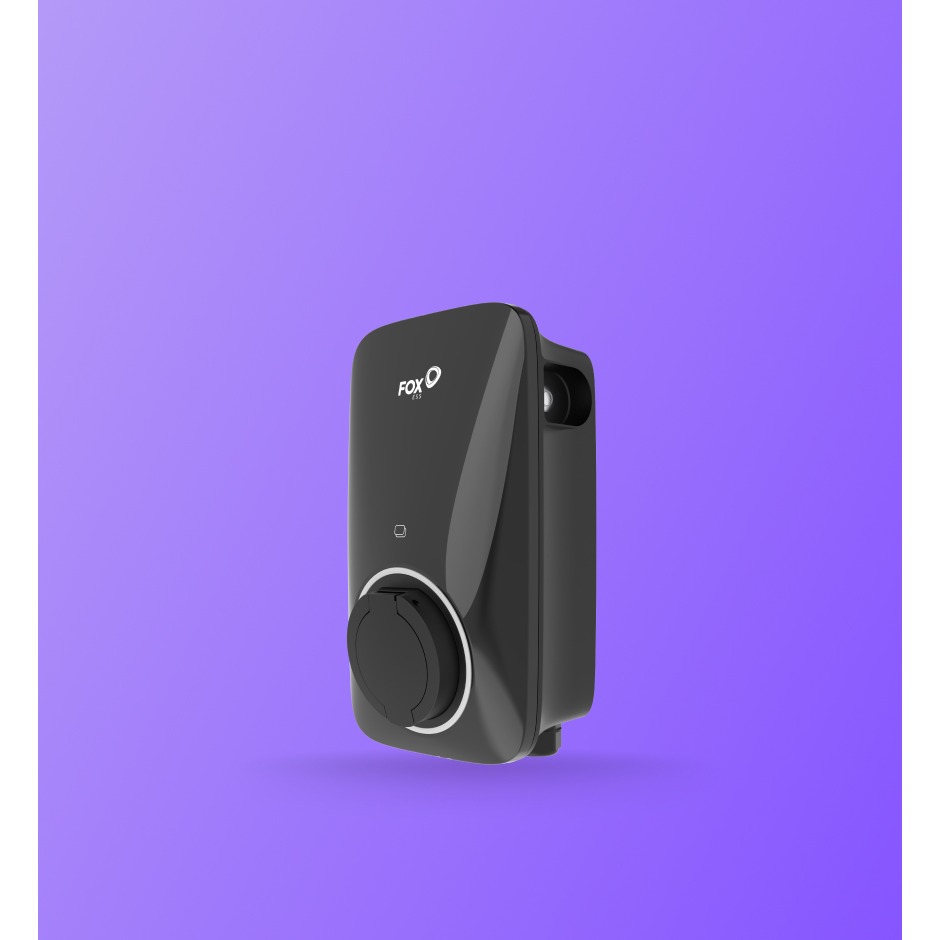

EV Charger Fox Ess A series Multiphase 7/22kW Tethered 7.5M-Cable Black w/WiFi/RFID/OCPP/LAN/Bluetooth (7.5m)
The FOX ESS A-Series A022KP1-E-B is a multiphase tethered EV charger that auto-handles single-phase 7 kW or three-phase up to 22 kW from a single hardware platform, ideal for Australian homes that may upgrade their switchboard later. The black finish unit ships with a Type 2 tethered cable, OCPP 1.6 JSON and 2.0.1 compliance for third-party load management and energy retailers, and full connectivity (WiFi, Bluetooth, RFID, LAN, optional 4G). Solar surplus diversion and dynamic load balancing make it a natural pair with FOX ESS hybrid inverters. IP65 body, IK08 impact rating, V2G / ISO 15118 hardware-ready, RCM-certified for Australia.
EV Charger Fox Ess A series Multiphase 7/22kW Tethered 7.5M-Cable Black w/WiFi/RFID/OCPP/LAN/Bluetooth (7.5m)
The FOX ESS A-Series A022KP1-E-B is a multiphase tethered EV charger that auto-handles single-phase 7 kW or three-phase up to 22 kW from a single hardware platform, ideal for Australian homes that may upgrade their switchboard later. The black finish unit ships with a Type 2 tethered cable, OCPP 1.6 JSON and 2.0.1 compliance for third-party load management and energy retailers, and full connectivity (WiFi, Bluetooth, RFID, LAN, optional 4G). Solar surplus diversion and dynamic load balancing make it a natural pair with FOX ESS hybrid inverters. IP65 body, IK08 impact rating, V2G / ISO 15118 hardware-ready, RCM-certified for Australia.
Note on cable length: Please confirm the cable length supplied with your unit when ordering. The published FOX ESS A-Series datasheet specifies a 6 metre tethered cable.
Key Features
- Multiphase output: up to 22 kW three-phase (400 V) or 7.3 kW single-phase (230 V)
- Tethered Type 2 connector (IEC 62196)
- OCPP 1.6 JSON and OCPP 2.0.1 compliant
- WiFi, Bluetooth, Ethernet LAN, RFID and optional 4G connectivity
- Dynamic load balancing and solar surplus diversion
- V2G / ISO 15118 hardware-ready for future bidirectional charging
- Residual current protection: AC 30 mA + DC 6 mA built in
- IP65 body, IK08 impact rating
- Salt-mist and UV resistant for coastal sites
- Operating range -30 to +50 degrees Celsius
- RCM-certified for Australia, CE, CB, UKCA
Specifications
| Model | A022KP1-E-B (Black) |
| Max charging power | 22 kW (3-phase) / 7.3 kW (single-phase) |
| Max charging current | 32 A |
| Connector | Type 2 tethered (IEC 62196) |
| Protection rating | IP65 (body), IK08 (impact) |
| Dimensions | 190 x 320 x 130 mm |
| Weight | 6.3 kg or less |
| Operating temperature | -30 to +50 degrees Celsius |
| Standards | EN/IEC 61851-1:2019 + 61851-21-2:2021, CE/CB/UKCA/RCM |
